Pathway Description
Ara operon Inactivation (Negative regulation of araBAD)
Escherichia coli
Signaling Pathway
The L-arabinose operon, also called the ara or araBAD operon, is an operon required for the breakdown of the five-carbon sugar, L-arabinose, in Escherichia coli. The L-arabinose operon contains three structural genes: araB, araA, araD (collectively known as araBAD), which encode for three metabolic enzymes that are required for the metabolism of L-arabinose. AraB (ribulokinase), AraA (an isomerase), AraD (an epimerase) produced by these genes catalyse conversion of L-arabinose to an intermediate of the pentose phosphate pathway, D-xylulose-5-phosphate.
The structural genes of the L-arabinose operon are transcribed from a common promoter into a single transcript, a mRNA. The expression of the L-arabinose operon is controlled as a single unit by the product of regulatory gene araC and the catabolite activator protein (CAP)-cAMP complex. The regulator protein AraC is sensitive to the level of arabinose and plays a dual role as both an activator in the presence of arabinose and a repressor in the absence of arabinose to regulate the expression of araBAD. AraC protein not only controls the expression of araBAD but also auto-regulates its own expression at high AraC levels.
-----------------------------------
Negative regulation of araBAD

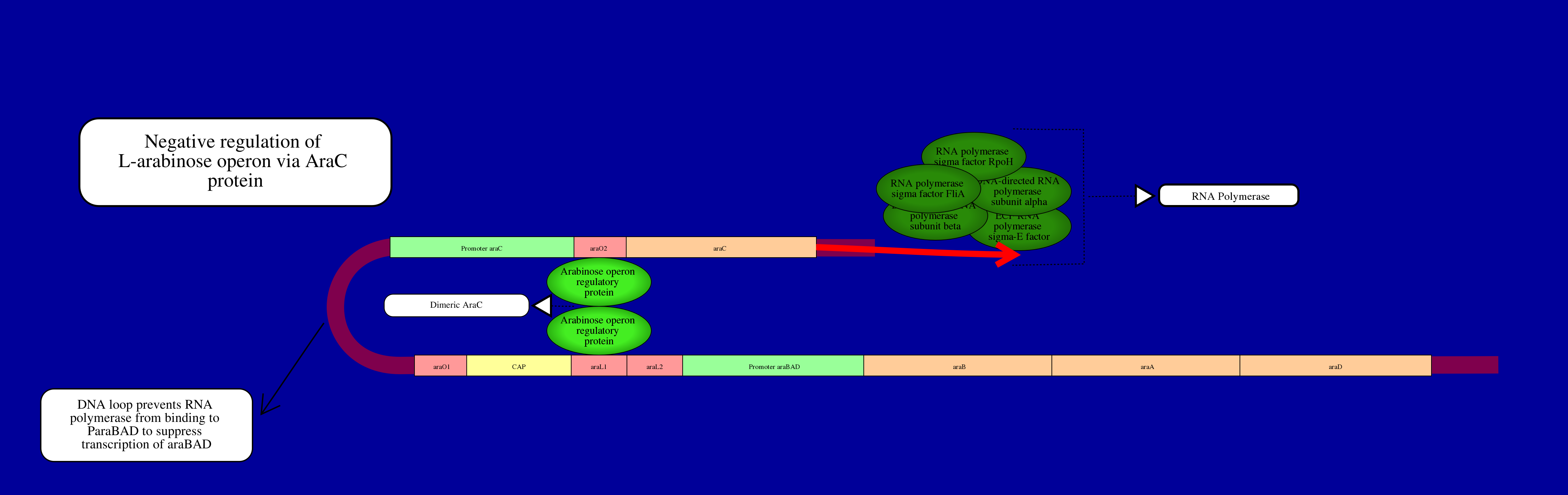

Negative regulation of L-arabinose operon via AraC protein:
When arabinose is absent, cells do not need the araBAD products for breaking down arabinose. Therefore, dimeric AraC acts as a repressor: one monomer binds to the operator of the araBAD gene (araO2), another monomer binds to a distant DNA half site known as araI1. This leads to the formation of a DNA loop. This orientation blocks RNA polymerase from binding to the araBAD promoter. Therefore, transcription of structural gene araBAD is inhibited.
-----------------------------------
Positive regulation of araBAD
Positive regulation of L-arabinose operon via dimeric AraC and CAP/cAMP:
Expression of the araBAD operon is activated in the absence of glucose and in the presence of arabinose. When arabinose is present, both AraC and CAP work together and function as activators.
-----------------------------------
Autoregulation of AraC:
The expression of araC is negatively regulated by its own protein product, AraC. The excess AraC binds to the operator of the araC gene, araO1, at high AraC levels, which physically blocks the RNA polymerase from accessing the araC promoter. Therefore, the AraC protein inhibits its own expression at high concentrations.
References
Ara operon Inactivation (Negative regulation of araBAD) References
Schleif R: Regulation of the L-arabinose operon of Escherichia coli. Trends in Genetics. 2000; 16(12):559-565.
Schleif R: AraC protein, regulation of the l-arabinose operon in Escherichia coli, and the light switch mechanism of AraC action. FEMS Microbiol Rev. 2010 Sep;34(5):779-96. doi: 10.1111/j.1574-6976.2010.00226.x. Epub 2010 Apr 8.
Pubmed: 20491933
