Pathway Description

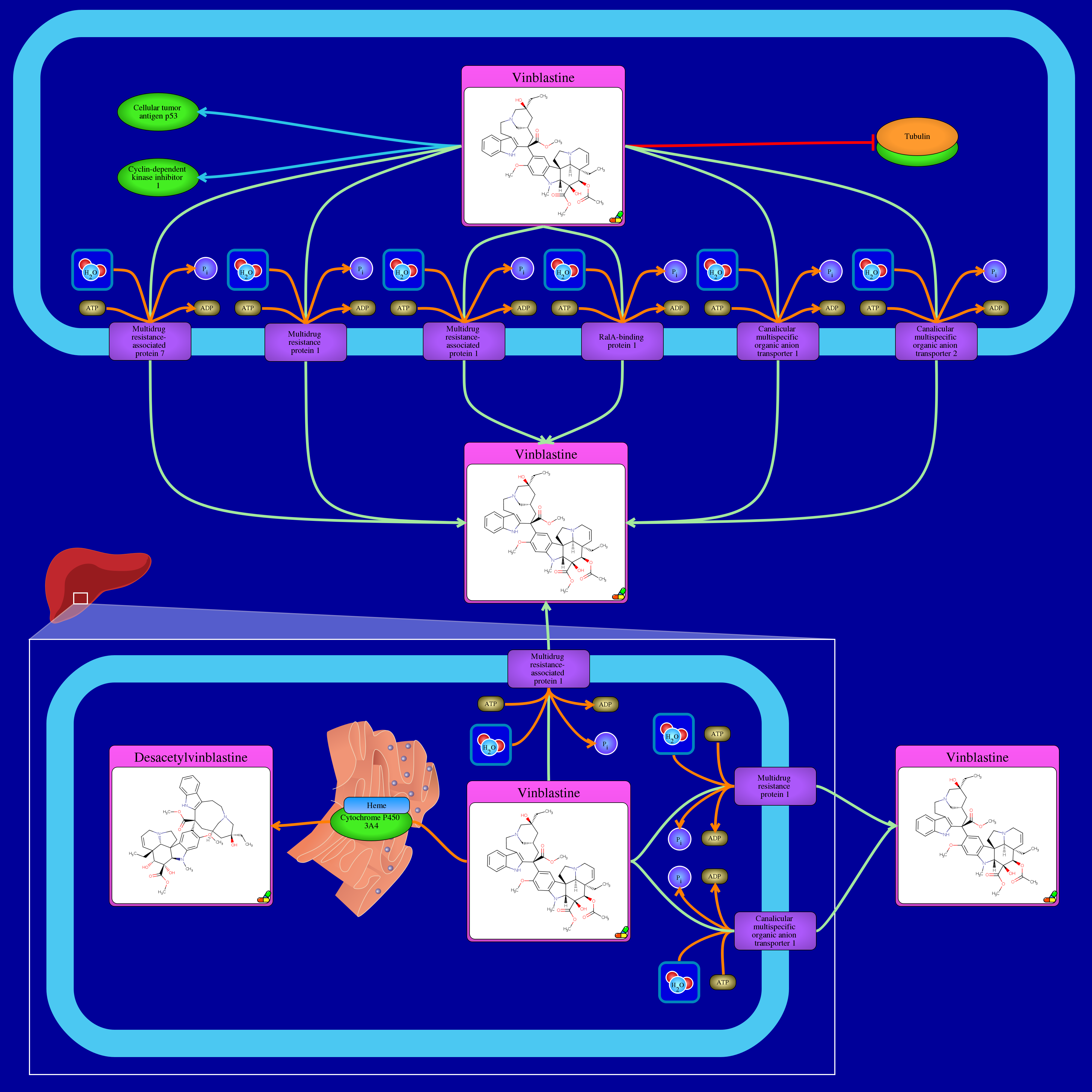

Vinblastine Action Pathway
Homo sapiens
Drug Action Pathway
Created: 2013-08-22
Last Updated: 2019-08-16
Vinblastine (also named Velban) is a natural alkaloid isolated from the leaves of the Catharanthus roseus (commonly known as the Madagascar periwinkle). Vinblastine are used as chemotherapy medication such as an antimitotic anticancer agent. The mechanism of vinblastine is the inhibition of microtubule dynamics that would cause mitotic arrest and eventual cell death. As a microtubule destabilizing agent, Vinblastine stimulates mitotic spindle destruction and microtubule depolymerization at high concentrations. At lower clinically relevant concentrations, vinblastine can block mitotic progression. Unlike the taxanes, which bind poorly to soluble tubulin, vinblastine can bind both soluble and microtubule-associated tubulin. To be able stabilizing the kinetics of microtule, vinblastine rapidly and reversibly bind to soluble tubulin which can increase the affinity of tublin by the induction of conformational changes of tubulin. Vinblastine binds to β-tubulin subunits at the positive end of microtubules at a region called the _Vinca_-binding domain. Binding between vinblastine and solubale tubulin decreases the rate of microtubule dynamics (lengthening and shortening) and increases the duration of attenuated state of microtubules. Therefore, the proper assembly of the mitotic spindle could be prevented; and the tension at the kinetochores of the chromosomes could be reduced. Subsequently, chromosomes can not progress to the spindle equator at the spindle poles. Progression from metaphase to anaphase is blocked and cells enter a state of mitotic arrest. The cells may then undergo one of several fates. The tetraploid cell may undergo unequal cell division producing aneuploid daughter cells. Alternatively, it may exit the cell cycle without undergoing cell division, a process termed mitotic slippage or adaptation. These cells may continue progressing through the cell cycle as tetraploid cells (Adaptation I), may exit G1 phase and undergo apoptosis or senescence (Adaption II), or may escape to G1 and undergo apoptosis during interphase (Adaptation III). Another possibility is cell death during mitotic arrest. Alternatively, mitotic catastrophe may occur and cause cell death. Vinca alkaloids are also thought to increase apoptosis by increasing concentrations of p53 (cellular tumor antigen p53) and p21 (cyclin-dependent kinase inhibitor 1) and by inhibiting Bcl-2 activity. Increasing concentrations of p53 and p21 lead to changes in protein kinase activity. Phosphorylation of Bcl-2 subsequently inhibits the formation Bcl-2-BAX heterodimers. This results in decreased anti-apoptotic activity. One way in which cells have developed resistance against the vinca alkaloids is by drug efflux. Drug efflux is mediated by a number of multidrug resistant transporters as depicted in this pathway.
References
Vinblastine Pathway References
Gascoigne KE, Taylor SS: How do anti-mitotic drugs kill cancer cells? J Cell Sci. 2009 Aug 1;122(Pt 15):2579-85. doi: 10.1242/jcs.039719.
Pubmed: 19625502
Haldar S, Jena N, Croce CM: Inactivation of Bcl-2 by phosphorylation. Proc Natl Acad Sci U S A. 1995 May 9;92(10):4507-11.
Pubmed: 7753834
Jordan MA, Wilson L: Microtubules as a target for anticancer drugs. Nat Rev Cancer. 2004 Apr;4(4):253-65. doi: 10.1038/nrc1317.
Pubmed: 15057285
Wang LG, Liu XM, Kreis W, Budman DR: The effect of antimicrotubule agents on signal transduction pathways of apoptosis: a review. Cancer Chemother Pharmacol. 1999;44(5):355-61. doi: 10.1007/s002800050989.
Pubmed: 10501907
Harper JW, Adami GR, Wei N, Keyomarsi K, Elledge SJ: The p21 Cdk-interacting protein Cip1 is a potent inhibitor of G1 cyclin-dependent kinases. Cell. 1993 Nov 19;75(4):805-16. doi: 10.1016/0092-8674(93)90499-g.
Pubmed: 8242751
el-Deiry WS, Tokino T, Velculescu VE, Levy DB, Parsons R, Trent JM, Lin D, Mercer WE, Kinzler KW, Vogelstein B: WAF1, a potential mediator of p53 tumor suppression. Cell. 1993 Nov 19;75(4):817-25. doi: 10.1016/0092-8674(93)90500-p.
Pubmed: 8242752
Xiong Y, Hannon GJ, Zhang H, Casso D, Kobayashi R, Beach D: p21 is a universal inhibitor of cyclin kinases. Nature. 1993 Dec 16;366(6456):701-4. doi: 10.1038/366701a0.
Pubmed: 8259214
Zakut-Houri R, Bienz-Tadmor B, Givol D, Oren M: Human p53 cellular tumor antigen: cDNA sequence and expression in COS cells. EMBO J. 1985 May;4(5):1251-5.
Pubmed: 4006916
Lamb P, Crawford L: Characterization of the human p53 gene. Mol Cell Biol. 1986 May;6(5):1379-85. doi: 10.1128/mcb.6.5.1379.
Pubmed: 2946935
Harlow E, Williamson NM, Ralston R, Helfman DM, Adams TE: Molecular cloning and in vitro expression of a cDNA clone for human cellular tumor antigen p53. Mol Cell Biol. 1985 Jul;5(7):1601-10. doi: 10.1128/mcb.5.7.1601.
Pubmed: 3894933
Deloukas P, Matthews LH, Ashurst J, Burton J, Gilbert JG, Jones M, Stavrides G, Almeida JP, Babbage AK, Bagguley CL, Bailey J, Barlow KF, Bates KN, Beard LM, Beare DM, Beasley OP, Bird CP, Blakey SE, Bridgeman AM, Brown AJ, Buck D, Burrill W, Butler AP, Carder C, Carter NP, Chapman JC, Clamp M, Clark G, Clark LN, Clark SY, Clee CM, Clegg S, Cobley VE, Collier RE, Connor R, Corby NR, Coulson A, Coville GJ, Deadman R, Dhami P, Dunn M, Ellington AG, Frankland JA, Fraser A, French L, Garner P, Grafham DV, Griffiths C, Griffiths MN, Gwilliam R, Hall RE, Hammond S, Harley JL, Heath PD, Ho S, Holden JL, Howden PJ, Huckle E, Hunt AR, Hunt SE, Jekosch K, Johnson CM, Johnson D, Kay MP, Kimberley AM, King A, Knights A, Laird GK, Lawlor S, Lehvaslaiho MH, Leversha M, Lloyd C, Lloyd DM, Lovell JD, Marsh VL, Martin SL, McConnachie LJ, McLay K, McMurray AA, Milne S, Mistry D, Moore MJ, Mullikin JC, Nickerson T, Oliver K, Parker A, Patel R, Pearce TA, Peck AI, Phillimore BJ, Prathalingam SR, Plumb RW, Ramsay H, Rice CM, Ross MT, Scott CE, Sehra HK, Shownkeen R, Sims S, Skuce CD, Smith ML, Soderlund C, Steward CA, Sulston JE, Swann M, Sycamore N, Taylor R, Tee L, Thomas DW, Thorpe A, Tracey A, Tromans AC, Vaudin M, Wall M, Wallis JM, Whitehead SL, Whittaker P, Willey DL, Williams L, Williams SA, Wilming L, Wray PW, Hubbard T, Durbin RM, Bentley DR, Beck S, Rogers J: The DNA sequence and comparative analysis of human chromosome 20. Nature. 2001 Dec 20-27;414(6866):865-71. doi: 10.1038/414865a.
Pubmed: 11780052
Gerhard DS, Wagner L, Feingold EA, Shenmen CM, Grouse LH, Schuler G, Klein SL, Old S, Rasooly R, Good P, Guyer M, Peck AM, Derge JG, Lipman D, Collins FS, Jang W, Sherry S, Feolo M, Misquitta L, Lee E, Rotmistrovsky K, Greenhut SF, Schaefer CF, Buetow K, Bonner TI, Haussler D, Kent J, Kiekhaus M, Furey T, Brent M, Prange C, Schreiber K, Shapiro N, Bhat NK, Hopkins RF, Hsie F, Driscoll T, Soares MB, Casavant TL, Scheetz TE, Brown-stein MJ, Usdin TB, Toshiyuki S, Carninci P, Piao Y, Dudekula DB, Ko MS, Kawakami K, Suzuki Y, Sugano S, Gruber CE, Smith MR, Simmons B, Moore T, Waterman R, Johnson SL, Ruan Y, Wei CL, Mathavan S, Gunaratne PH, Wu J, Garcia AM, Hulyk SW, Fuh E, Yuan Y, Sneed A, Kowis C, Hodgson A, Muzny DM, McPherson J, Gibbs RA, Fahey J, Helton E, Ketteman M, Madan A, Rodrigues S, Sanchez A, Whiting M, Madari A, Young AC, Wetherby KD, Granite SJ, Kwong PN, Brinkley CP, Pearson RL, Bouffard GG, Blakesly RW, Green ED, Dickson MC, Rodriguez AC, Grimwood J, Schmutz J, Myers RM, Butterfield YS, Griffith M, Griffith OL, Krzywinski MI, Liao N, Morin R, Palmquist D, Petrescu AS, Skalska U, Smailus DE, Stott JM, Schnerch A, Schein JE, Jones SJ, Holt RA, Baross A, Marra MA, Clifton S, Makowski KA, Bosak S, Malek J: The status, quality, and expansion of the NIH full-length cDNA project: the Mammalian Gene Collection (MGC). Genome Res. 2004 Oct;14(10B):2121-7. doi: 10.1101/gr.2596504.
Pubmed: 15489334
Gevaert K, Goethals M, Martens L, Van Damme J, Staes A, Thomas GR, Vandekerckhove J: Exploring proteomes and analyzing protein processing by mass spectrometric identification of sorted N-terminal peptides. Nat Biotechnol. 2003 May;21(5):566-9. doi: 10.1038/nbt810. Epub 2003 Mar 31.
Pubmed: 12665801
Cowan NJ, Dobner PR, Fuchs EV, Cleveland DW: Expression of human alpha-tubulin genes: interspecies conservation of 3' untranslated regions. Mol Cell Biol. 1983 Oct;3(10):1738-45. doi: 10.1128/mcb.3.10.1738.
Pubmed: 6646120
Baumann MH, Wisniewski T, Levy E, Plant GT, Ghiso J: C-terminal fragments of alpha- and beta-tubulin form amyloid fibrils in vitro and associate with amyloid deposits of familial cerebral amyloid angiopathy, British type. Biochem Biophys Res Commun. 1996 Feb 6;219(1):238-42. doi: 10.1006/bbrc.1996.0211.
Pubmed: 8619814
Itoda M, Saito Y, Komamura K, Ueno K, Kamakura S, Ozawa S, Sawada J: Twelve novel single nucleotide polymorphisms in ABCB1/MDR1 among Japanese patients with ventricular tachycardia who were administered amiodarone. Drug Metab Pharmacokinet. 2002;17(6):566-71.
Pubmed: 15618713
Chen CJ, Chin JE, Ueda K, Clark DP, Pastan I, Gottesman MM, Roninson IB: Internal duplication and homology with bacterial transport proteins in the mdr1 (P-glycoprotein) gene from multidrug-resistant human cells. Cell. 1986 Nov 7;47(3):381-9. doi: 10.1016/0092-8674(86)90595-7.
Pubmed: 2876781
Chen CJ, Clark D, Ueda K, Pastan I, Gottesman MM, Roninson IB: Genomic organization of the human multidrug resistance (MDR1) gene and origin of P-glycoproteins. J Biol Chem. 1990 Jan 5;265(1):506-14.
Pubmed: 1967175
Chen ZS, Hopper-Borge E, Belinsky MG, Shchaveleva I, Kotova E, Kruh GD: Characterization of the transport properties of human multidrug resistance protein 7 (MRP7, ABCC10). Mol Pharmacol. 2003 Feb;63(2):351-8. doi: 10.1124/mol.63.2.351.
Pubmed: 12527806
Kao HH, Chang MS, Cheng JF, Huang JD: Genomic structure, gene expression, and promoter analysis of human multidrug resistance-associated protein 7. J Biomed Sci. 2003 Jan-Feb;10(1):98-110. doi: 10.1007/bf02256002.
Pubmed: 12566991
Hattori A, Okumura K, Nagase T, Kikuno R, Hirosawa M, Ohara O: Characterization of long cDNA clones from human adult spleen. DNA Res. 2000 Dec 31;7(6):357-66. doi: 10.1093/dnares/7.6.357.
Pubmed: 11214971
Ito K, Olsen SL, Qiu W, Deeley RG, Cole SP: Mutation of a single conserved tryptophan in multidrug resistance protein 1 (MRP1/ABCC1) results in loss of drug resistance and selective loss of organic anion transport. J Biol Chem. 2001 May 11;276(19):15616-24. doi: 10.1074/jbc.M011246200. Epub 2001 Feb 21.
Pubmed: 11278867
Situ D, Haimeur A, Conseil G, Sparks KE, Zhang D, Deeley RG, Cole SP: Mutational analysis of ionizable residues proximal to the cytoplasmic interface of membrane spanning domain 3 of the multidrug resistance protein, MRP1 (ABCC1): glutamate 1204 is important for both the expression and catalytic activity of the transporter. J Biol Chem. 2004 Sep 10;279(37):38871-80. doi: 10.1074/jbc.M403832200. Epub 2004 Jun 18.
Pubmed: 15208328
Mitra P, Oskeritzian CA, Payne SG, Beaven MA, Milstien S, Spiegel S: Role of ABCC1 in export of sphingosine-1-phosphate from mast cells. Proc Natl Acad Sci U S A. 2006 Oct 31;103(44):16394-9. doi: 10.1073/pnas.0603734103. Epub 2006 Oct 18.
Pubmed: 17050692
Jullien-Flores V, Dorseuil O, Romero F, Letourneur F, Saragosti S, Berger R, Tavitian A, Gacon G, Camonis JH: Bridging Ral GTPase to Rho pathways. RLIP76, a Ral effector with CDC42/Rac GTPase-activating protein activity. J Biol Chem. 1995 Sep 22;270(38):22473-7. doi: 10.1074/jbc.270.38.22473.
Pubmed: 7673236
Awasthi S, Cheng J, Singhal SS, Saini MK, Pandya U, Pikula S, Bandorowicz-Pikula J, Singh SV, Zimniak P, Awasthi YC: Novel function of human RLIP76: ATP-dependent transport of glutathione conjugates and doxorubicin. Biochemistry. 2000 Aug 8;39(31):9327-34. doi: 10.1021/bi992964c.
Pubmed: 10924126
Arlanov R, Porter A, Strand D, Brough R, Karpova D, Kerb R, Wojnowski L, Schwab M, Lang T: Functional characterization of protein variants of the human multidrug transporter ABCC2 by a novel targeted expression system in fibrosarcoma cells. Hum Mutat. 2012 Apr;33(4):750-62. doi: 10.1002/humu.22041. Epub 2012 Feb 28.
Pubmed: 22290738
Taniguchi K, Wada M, Kohno K, Nakamura T, Kawabe T, Kawakami M, Kagotani K, Okumura K, Akiyama S, Kuwano M: A human canalicular multispecific organic anion transporter (cMOAT) gene is overexpressed in cisplatin-resistant human cancer cell lines with decreased drug accumulation. Cancer Res. 1996 Sep 15;56(18):4124-9.
Pubmed: 8797578
Buchler M, Konig J, Brom M, Kartenbeck J, Spring H, Horie T, Keppler D: cDNA cloning of the hepatocyte canalicular isoform of the multidrug resistance protein, cMrp, reveals a novel conjugate export pump deficient in hyperbilirubinemic mutant rats. J Biol Chem. 1996 Jun 21;271(25):15091-8. doi: 10.1074/jbc.271.25.15091.
Pubmed: 8662992
