Pathway Description
ACE
Homo sapiens
Physiological Pathway
Created: 2023-09-11
Last Updated: 2023-11-27

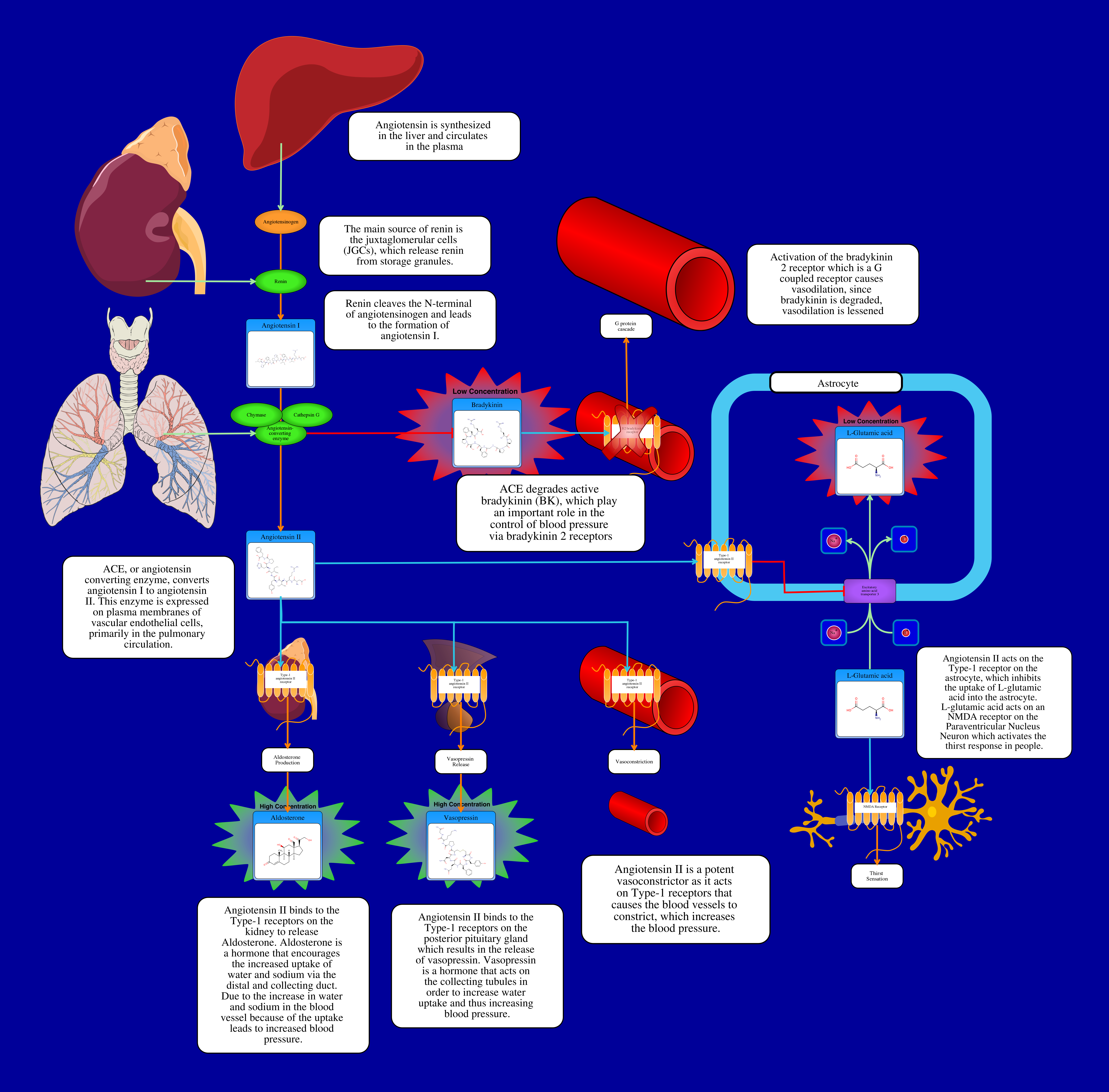

Angiotensin-converting enzyme (EC 3.4.15.1), or ACE, is a central component of the renin–angiotensin system (RAS), which controls blood pressure by regulating the volume of fluids in the body. It converts the hormone angiotensin I to the active vasoconstrictor angiotensin II. Therefore, ACE indirectly increases blood pressure by causing blood vessels to constrict. ACE inhibitors are widely used as pharmaceutical drugs for treatment of cardiovascular diseases. Other lesser known functions of ACE are degradation of bradykinin, substance P, and amyloid beta-protein. Angiotensin converting enzyme (ACE) is well known for its dual actions in converting inactive Ang I to active Ang II and degrade active bradykinin (BK), which play an important role in the control of blood pressure. Since the bottle neck step is the production of pressor Ang II, this was targeted pharmacologically in 1970s and successful ACE inhibitors such as captopril were produced to treat hypertension. ACE2 was identified as the receptor for SARS (severe acute respiratory syndrome) coronavirus, which caused the outbreak of an epidemic in 2002–2003. Two isozymes of ACE are present in mammals: somatic ACE and testis ACE. Somatic ACE possesses two catalytic domains (N- and C-domains) and a C-terminal transmembrane segment (stalk). Somatic and testis ACEs in humans contain 1,306 and 665 aa residues, respectively. Testis ACE only possesses one catalytic domain. Both catalytic domains are zinc-metallopeptidase with the active motif HEMGH where the two histidine residues coordinate the zinc ion. The stalk anchors the enzyme on the membrane and is susceptible to be cleaved by shedding enzymes, resulting in plasma ACE activity. Somatic ACE is expressed in various tissues including blood vessels, kidney, intestine, adrenal gland, liver, and uterus, and is especially abundant in highly vascular organs such as retina and lung. Testis ACE is expressed by postmeiotic male germ cells and high-level expression is found in round and elongated spermatids. ACE2 is expressed in lung, liver, intestine, brain, testis, heart, and kidney. Lung possesses the highest amount of ACE. Expression of ACE is affected by steroids and thyroid hormone, but the details of the regulation are not clear. ACE is under promoter regulation by hypoxia-inducing factor 1α (HIF-1α), which upregulates the ACE expression under hypoxic conditions, resulting in an increase in Ang II concentration. The well-known function of ACE is the conversion of Ang I to Ang II and degradation of BK, which all play an important role in controlling blood pressure. ACE also acts on other natural substrates including encephalin, neurotensin, and substance P. Besides being involved in blood pressure control, ACE possesses widespread functions including renal development, male fertility, hematopoiesis, erythropoiesis, myelopoiesis, and immune responses. ACE has been the target of hypertension control since the 1970s. ACE inhibitors are prescribed as the sole or combinational treatment of high blood pressure, for the dual effects of lowering Ang II and slowing down BK degradation. Angiotensin II binds to the type 1 angiotensin II receptor (AT1), which sets off a number of actions that result in vasoconstriction and therefore increased blood pressure. The B2 (bradykinin 2) receptor is constitutively expressed and participates in bradykinin's vasodilatory role, it is a G protein coupled receptor.
References
ACE References
Wong MKS. Angiotensin Converting Enzymes. Handbook of Hormones. 2016:263–e29D-4. doi: 10.1016/B978-0-12-801028-0.00254-3. Epub 2015 Sep 4. PMCID: PMC7150253.
Kaplan's Essentials of Cardiac Anesthesia. Elsevier. 2018. doi:10.1016/c2012-0-06151-0
Dicpinigaitis PV: Angiotensin-converting enzyme inhibitor-induced cough: ACCP evidence-based clinical practice guidelines. Chest. 2006 Jan;129(1 Suppl):169S-173S. doi: 10.1378/chest.129.1_suppl.169S.
Pubmed: 16428706
Coates D: The angiotensin converting enzyme (ACE). Int J Biochem Cell Biol. 2003 Jun;35(6):769-73. doi: 10.1016/s1357-2725(02)00309-6.
Pubmed: 12676162
Zhang R, Xu X, Chen T, Li L, Rao P: An assay for angiotensin-converting enzyme using capillary zone electrophoresis. Anal Biochem. 2000 May 1;280(2):286-90. doi: 10.1006/abio.2000.4535.
Pubmed: 10790312
Imig JD: ACE Inhibition and Bradykinin-Mediated Renal Vascular Responses: EDHF Involvement. Hypertension. 2004 Mar;43(3):533-5. doi: 10.1161/01.HYP.0000118054.86193.ce. Epub 2004 Feb 2.
Pubmed: 14757781
Fountain JH, Kaur J, Lappin SL. Physiology, Renin Angiotensin System. [Updated 2023 Mar 12]. In: StatPearls [Internet]. Treasure Island (FL): StatPearls Publishing; 2023 Jan-. Available from: https://www.ncbi.nlm.nih.gov/books/NBK470410/#
Kageyama R, Ohkubo H, Nakanishi S: Primary structure of human preangiotensinogen deduced from the cloned cDNA sequence. Biochemistry. 1984 Jul 31;23(16):3603-9. doi: 10.1021/bi00311a006.
Pubmed: 6089875
Gaillard I, Clauser E, Corvol P: Structure of human angiotensinogen gene. DNA. 1989 Mar;8(2):87-99.
Pubmed: 2924688
Fukamizu A, Takahashi S, Seo MS, Tada M, Tanimoto K, Uehara S, Murakami K: Structure and expression of the human angiotensinogen gene. Identification of a unique and highly active promoter. J Biol Chem. 1990 May 5;265(13):7576-82.
Pubmed: 1692023
Imai T, Miyazaki H, Hirose S, Hori H, Hayashi T, Kageyama R, Ohkubo H, Nakanishi S, Murakami K: Cloning and sequence analysis of cDNA for human renin precursor. Proc Natl Acad Sci U S A. 1983 Dec;80(24):7405-9. doi: 10.1073/pnas.80.24.7405.
Pubmed: 6324167
Morris BJ: New possibilities for intracellular renin and inactive renin now that the structure of the human renin gene has been elucidated. Clin Sci (Lond). 1986 Oct;71(4):345-55. doi: 10.1042/cs0710345.
Pubmed: 3530608
Hardman JA, Hort YJ, Catanzaro DF, Tellam JT, Baxter JD, Morris BJ, Shine J: Primary structure of the human renin gene. DNA. 1984 Dec;3(6):457-68.
Pubmed: 6391881
Ehlers MR, Riordan JF: Angiotensin-converting enzyme: zinc- and inhibitor-binding stoichiometries of the somatic and testis isozymes. Biochemistry. 1991 Jul 23;30(29):7118-26. doi: 10.1021/bi00243a012.
Pubmed: 1649623
Woodman ZL, Oppong SY, Cook S, Hooper NM, Schwager SL, Brandt WF, Ehlers MR, Sturrock ED: Shedding of somatic angiotensin-converting enzyme (ACE) is inefficient compared with testis ACE despite cleavage at identical stalk sites. Biochem J. 2000 May 1;347 Pt 3:711-8.
Pubmed: 10769174
Donoghue M, Hsieh F, Baronas E, Godbout K, Gosselin M, Stagliano N, Donovan M, Woolf B, Robison K, Jeyaseelan R, Breitbart RE, Acton S: A novel angiotensin-converting enzyme-related carboxypeptidase (ACE2) converts angiotensin I to angiotensin 1-9. Circ Res. 2000 Sep 1;87(5):E1-9. doi: 10.1161/01.res.87.5.e1.
Pubmed: 10969042
Salvesen G, Farley D, Shuman J, Przybyla A, Reilly C, Travis J: Molecular cloning of human cathepsin G: structural similarity to mast cell and cytotoxic T lymphocyte proteinases. Biochemistry. 1987 Apr 21;26(8):2289-93. doi: 10.1021/bi00382a032.
Pubmed: 3304423
Hohn PA, Popescu NC, Hanson RD, Salvesen G, Ley TJ: Genomic organization and chromosomal localization of the human cathepsin G gene. J Biol Chem. 1989 Aug 15;264(23):13412-9.
Pubmed: 2569462
Gerhard DS, Wagner L, Feingold EA, Shenmen CM, Grouse LH, Schuler G, Klein SL, Old S, Rasooly R, Good P, Guyer M, Peck AM, Derge JG, Lipman D, Collins FS, Jang W, Sherry S, Feolo M, Misquitta L, Lee E, Rotmistrovsky K, Greenhut SF, Schaefer CF, Buetow K, Bonner TI, Haussler D, Kent J, Kiekhaus M, Furey T, Brent M, Prange C, Schreiber K, Shapiro N, Bhat NK, Hopkins RF, Hsie F, Driscoll T, Soares MB, Casavant TL, Scheetz TE, Brown-stein MJ, Usdin TB, Toshiyuki S, Carninci P, Piao Y, Dudekula DB, Ko MS, Kawakami K, Suzuki Y, Sugano S, Gruber CE, Smith MR, Simmons B, Moore T, Waterman R, Johnson SL, Ruan Y, Wei CL, Mathavan S, Gunaratne PH, Wu J, Garcia AM, Hulyk SW, Fuh E, Yuan Y, Sneed A, Kowis C, Hodgson A, Muzny DM, McPherson J, Gibbs RA, Fahey J, Helton E, Ketteman M, Madan A, Rodrigues S, Sanchez A, Whiting M, Madari A, Young AC, Wetherby KD, Granite SJ, Kwong PN, Brinkley CP, Pearson RL, Bouffard GG, Blakesly RW, Green ED, Dickson MC, Rodriguez AC, Grimwood J, Schmutz J, Myers RM, Butterfield YS, Griffith M, Griffith OL, Krzywinski MI, Liao N, Morin R, Palmquist D, Petrescu AS, Skalska U, Smailus DE, Stott JM, Schnerch A, Schein JE, Jones SJ, Holt RA, Baross A, Marra MA, Clifton S, Makowski KA, Bosak S, Malek J: The status, quality, and expansion of the NIH full-length cDNA project: the Mammalian Gene Collection (MGC). Genome Res. 2004 Oct;14(10B):2121-7. doi: 10.1101/gr.2596504.
Pubmed: 15489334
Veenstra-VanderWeele J, Kim SJ, Gonen D, Hanna GL, Leventhal BL, Cook EH Jr: Genomic organization of the SLC1A1/EAAC1 gene and mutation screening in early-onset obsessive-compulsive disorder. Mol Psychiatry. 2001 Mar;6(2):160-7. doi: 10.1038/sj.mp.4000806.
Pubmed: 11317217
Myles-Worsley M, Tiobech J, Browning SR, Korn J, Goodman S, Gentile K, Melhem N, Byerley W, Faraone SV, Middleton FA: Deletion at the SLC1A1 glutamate transporter gene co-segregates with schizophrenia and bipolar schizoaffective disorder in a 5-generation family. Am J Med Genet B Neuropsychiatr Genet. 2013 Mar;162B(2):87-95. doi: 10.1002/ajmg.b.32125. Epub 2013 Jan 22.
Pubmed: 23341099
Bailey CG, Ryan RM, Thoeng AD, Ng C, King K, Vanslambrouck JM, Auray-Blais C, Vandenberg RJ, Broer S, Rasko JE: Loss-of-function mutations in the glutamate transporter SLC1A1 cause human dicarboxylic aminoaciduria. J Clin Invest. 2011 Jan;121(1):446-53. doi: 10.1172/JCI44474. Epub 2010 Dec 1.
Pubmed: 21123949
Mauzy CA, Hwang O, Egloff AM, Wu LH, Chung FZ: Cloning, expression, and characterization of a gene encoding the human angiotensin II type 1A receptor. Biochem Biophys Res Commun. 1992 Jul 15;186(1):277-84. doi: 10.1016/s0006-291x(05)80804-6.
Pubmed: 1378723
Furuta H, Guo DF, Inagami T: Molecular cloning and sequencing of the gene encoding human angiotensin II type 1 receptor. Biochem Biophys Res Commun. 1992 Feb 28;183(1):8-13. doi: 10.1016/0006-291x(92)91600-u.
Pubmed: 1543512
Bergsma DJ, Ellis C, Kumar C, Nuthulaganti P, Kersten H, Elshourbagy N, Griffin E, Stadel JM, Aiyar N: Cloning and characterization of a human angiotensin II type 1 receptor. Biochem Biophys Res Commun. 1992 Mar 31;183(3):989-95. doi: 10.1016/s0006-291x(05)80288-8.
Pubmed: 1567413
